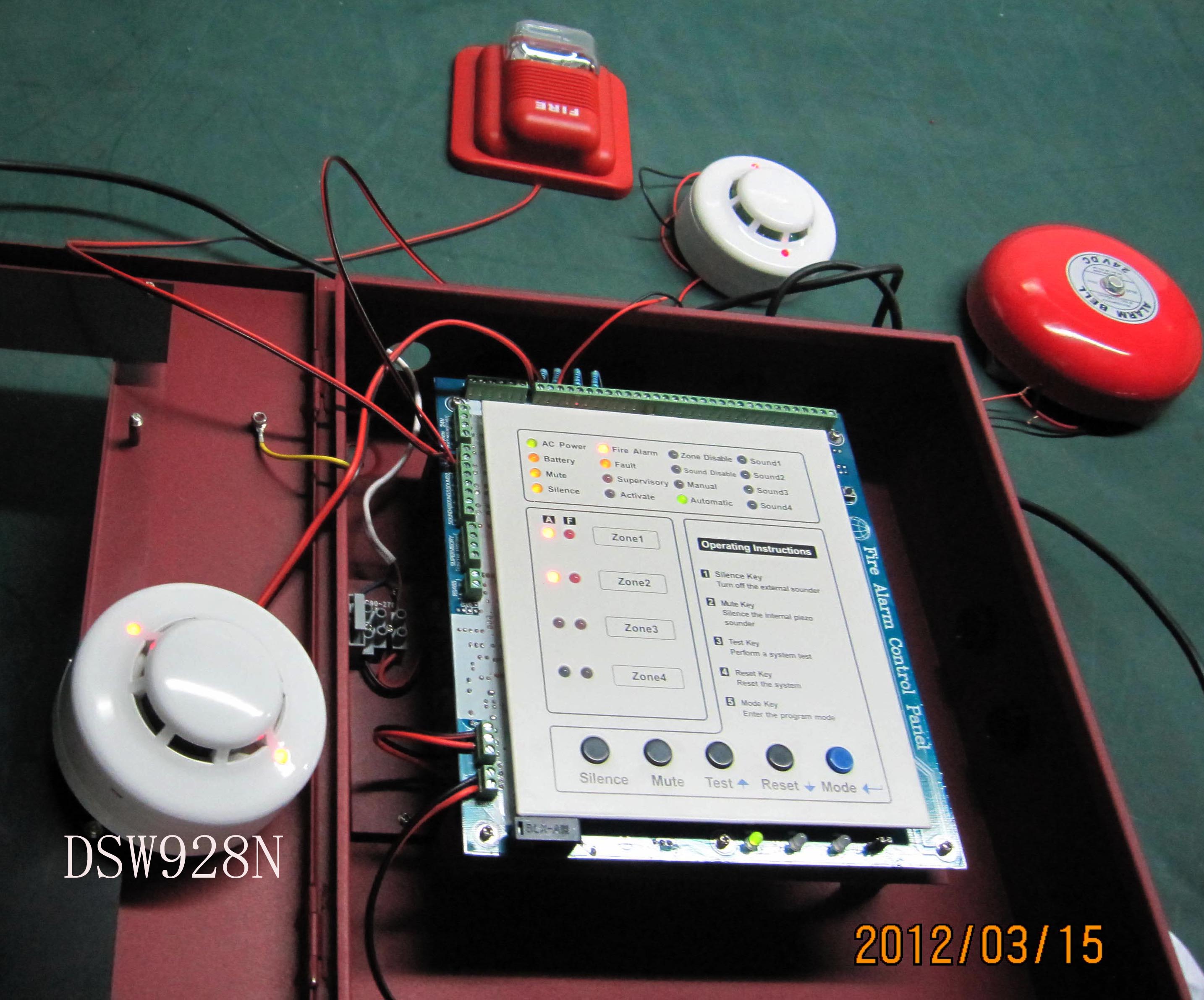

Conventional Fire Alarm Control Panel with four Zones
Fire control panel
Zone Alarm(4 Zone)
- Operating Voltage:DC 24V+/-15%,AC 220V +10%(-15%),50Hz
- Storage Batteries:The capacity of the batteries is supplied according to panel type and user's demand. The maximum capacity is 4 Ah .
- Detector operation voltage:DC 20-24V,
- Standby current:2.5 mA (when connected with 25 conventional detectors)
- Fire alarming resistor:150Ω-510Ω(normally 390Ω)
- Terminal resistor:3.6kΩ
- Sounder output voltage:DC20-24V,
- Sounder output current:1 A
- Sounder terminal resistor:3.6kΩ
- Fire output:Aux. power output,1A,DC 24V
- Fault output:Aux. power output 1A,DC 24V
- Dimension:280mm*320mm*95mm
Description:
•Four Style B (Class B) Initiating Device Circuits (IDCs).
•All zones accept two-wire smoke detectors and any normally-open contact devices.
•One built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
•Alarm, Trouble and Supervisory, Form-C relays standard.
•24-volt operation.
•Resettable four-wire smoke detector power @ 500 mA.
•Non-resettable power @ 500 mA.
•One-man walk-test programmable for silent or audible test.
•Disable/Enable control per IDC.
•Reverse polarity protection.
