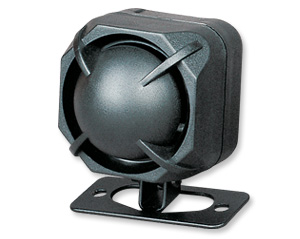

| Model No.:
EH-59T |
 |
Horn Speaker
Impedance12 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:24.5*3.5mm(Dia.*H) N48
Reson Freq:1K To 8 KHz
Power Rating:15 W(RMS)
Min Spl:80 dB at 12VDC/1m
Housing:Black or White ABS Plastic
Oper.Temp.:20 T0 65 F
Weight:160 g
Remark:
|
  |
|

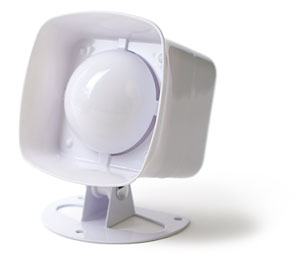

| Model No.:
EH-66S |
 |
Horn Speaker
Impedance6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10 mm
Reson Freq:600 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:95 dB/W/M Min
Housing:Black ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:360 g
Remark:Real T Yoke
|
|
|
|
| Model No.:
EH-280R |
 |
Horn Speaker
Impedance8 Ohm at 1 Khz
Voice Coil:Dia. 33mm
Magnet:80 *40*12 mm
Reson Freq:800 To 8 KHz
Power Rating:30 W(RMS)
Min Spl:103 dB/W/M
Housing:ABS White
Oper.Temp.:20 T0 60 F
Weight:1250 g
Remark:
|
|
|
|
| Model No.:
EH-104S |
 |
Horn Speaker
Impedance:6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10 mm
Reson Freq:600 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:95 dB/W/M Min
Housing:Black ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:360 g
Remark:Real T Yoke
|
|
|
|
| Model No.:
EH-105 |
 |
Horn Speaker
Impedance:80hm(at 1KHZ)
Voice Coil:25.4mm(Dia.)
Magnet:70*32*10mm(Dia.*dia*H)
Reson Freq:Fo.1.5KHz+/-10%
Power Rating:Power Rating RMS:20W;Power Rating Peak:30W
Min Spl:95+/-3db(at 1 meter,2.83V,1000Hz)
Housing:ABS/Blank
Oper.Temp.:-20~+65°C
Weight:350+/-20g
R
|
|
|
|
| Model No.:
EH-202 |
 |
Horn Speaker 25 Watts
Impedance:8 Ohm at 1 Khz
Voice Coil:Dia. 38 mm
Magnet:90 *45* 15 mm
Reson Freq:600 To 6 KHz
Power Rating:25 W RMS
Min Spl:96 dB/W/M (min)
Housing:ABS Plastic t
Oper.Temp.:20 T0 60 F
Weight:500 g
Remark:Powerful Speaker Horn
|
|
|
|
