DDT85

Motion Detectors

  • Detection distance:11m*11m
  • Installation way:Wall-hanging
  • Sensor:Low noise, high flexibility dual beams rectangle infrared * 2
  • Installation height:2.0-2.7m
  • Tamper switch:N.C., cover detached, open circuit, 0.10A 28VDC
  • Alarm output:N.C., 0.15A 28VDC
  • Detecting speed:0.2m/s-3.5m/s
  • Operation voltage:9-16VDC
  • Flexibility:Grade 2, adjustable
  • Operation temperature:-25°C~65°C
  • Operating humidity:5%-95%RH (relevant humidity)
  • region:(12+12+12+12+6+1)=55
  • Anti-visible light:>10000LUX
  • Anti-RFI/EMI:10v/m(10MHz-1000MHz)
  • Dimension:175*83*70mm (W*H*D)
  • cart
Description:
Digital DDT-85 is also very dependable when used outdoor with its particular severe-weather-protecting design and anti-pets function after technical test.

  Reliable function of resistance to wrong alarm

  Dual optical filter system

  Protecting lens anti-UV

  Remarkable anti-small animals function(Max:40kg/90Lbs)

  Digital dual contra-positional detection

  Multi-layered flexibility adjustment

  Double optical equipments(2 pairs of contra-positional elements sensors)

  Dual operation mode(Digital RPE-LPT siting & digital RPE-LPT NE siting or groovy relay operation)

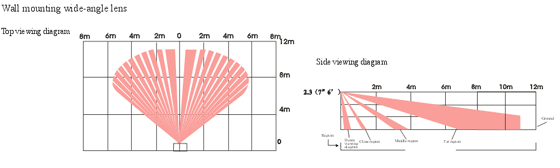

  Detection scale:11m(35ft)*11m(35ft):90¡ãviewing angle
