DDT-651
Motion Detectors
- Infrared sensor:Dual element
- Power supply:9~16 VDC,12V typical
- Current drain:N.C:15 mA,N.O:5mA 12VDC
- Alarm output:N.C/N.O 30VDC,0.2A max.
- Alarm period:1.5~2.5 sec.
- Pulse count:2 / 3 selectable
- Tamper switch:N.C cover open activates
- Walk test LED:Red,can be disabled
- RFI immunity:Ave.20V/m(10~1000 MHz)
- Detectable speed:0.3~1.5m/sec.

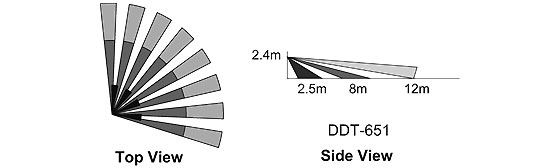

- Mounting height:2.2~3.6m
- Humidity:95% RH maximum
- Temperature:-20oC~65oC(-4oF~140oF)
- Dimensions:112 X 66 X 46 mm
- Unit weight:87 grams
