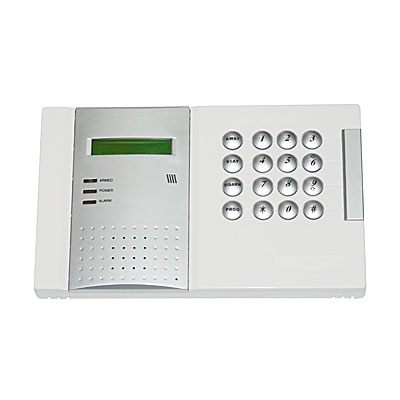

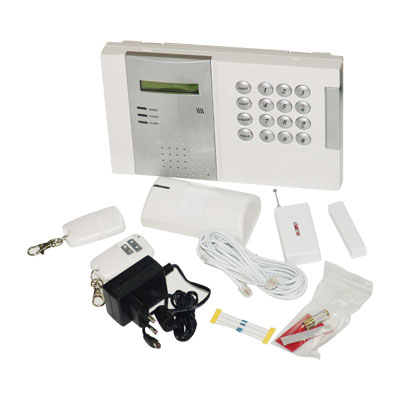

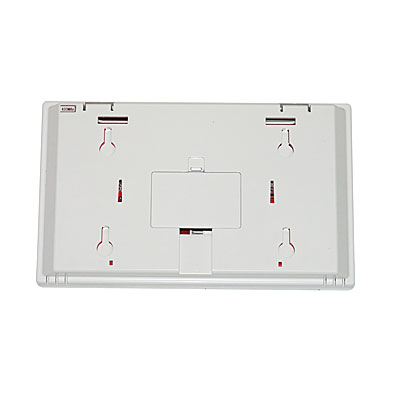

DSM-801
Control Panels
Control Panels,Alarm System
- Power adapter working voltage:AC100V~240V
- Operating voltage of the control panel:12VDC
- Static operating current:<130mA
- Bell output current:<400mA
- Dimension:250*150*45mm
- Wireless frequency:315 MHz/433MHz/868MHz
- detector receive range:<90m( no obstacle)
- remote control valid range:<50m( no obstacle)
- record time 4 second
Description:
16 wireless zone,4 wired zone,can compatible with all kinds of wireless and wired detector.
LCD display,friendly English guidance for operation
smart program:the user can set the parameter freely.
Compatible with communication protocol:ADEMCO 4+1 Contact ID,It can be used by single or net alarm system. Automatically dial alarm center,user cell phone or fixed telephone with audible alarm while emergencies happen.
Alarm received phones:1 in alarm center and 5 common telephones.
7 codes:1 user code,1 duress code,5 operator code.
Wireless code learns restoring and reading function with simple usage
5 remote control panel at most.
Arm & disarm using 5 wireless remote controllers on the spot.
Several alarm modes:alarm bell and voice alarm
Three groups timed auto arm/disarm time Protection zone valid/bypass selectable,user can set alarm area as desired.
Restore user password to factory defaults by hardware and restore the system factory defaults by software.
Record 40 latest alarm events
Malfunction alarm:AC power fail,low voltage and telephone line loss
Set real-time clock inside
Auto-recording function,record the address of the alarm and other information
Programmable relay output
Anti-tamper function of the control panel
Field monitor function
