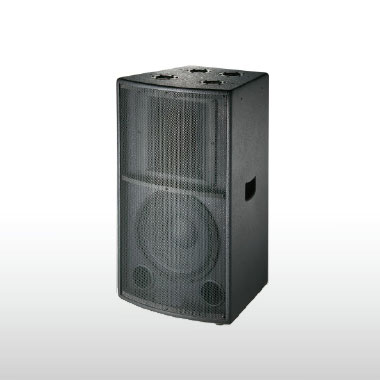

| Model No.:
ESS-3915 |
 |
Wooden Box
15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-20KHZ(-10dB)
Sensitivity:99dB(+/-2dB)
Impedance:8 Ohm
RMS Power:200 W
11.5"×11.5"Horn 44mm Ti.Diap.Driver
|
  |
|

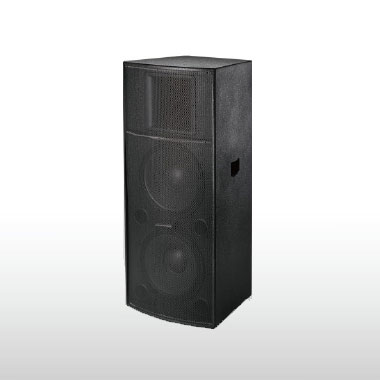

| Model No.:
ESS-39215 |
 |
Wooden Box
2×15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-20KHZ(-10dB)
Sensitivity:100dB(+/-2dB)
Impedance:8 Ohm
RMS Power:500 W
11.5"×11.5"Horn 44mm Ti.Diap.Driver
|
|
|
|

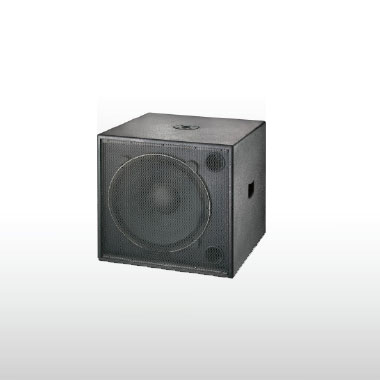

| Model No.:
ESS-3918 |
 |
Wooden Box
18"Woofer with Wooden Box
Magnet:100 oz
VoiceCoil:4"KSV
Frequency Response:35HZ-3.5KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:400 W
|
|
|
|

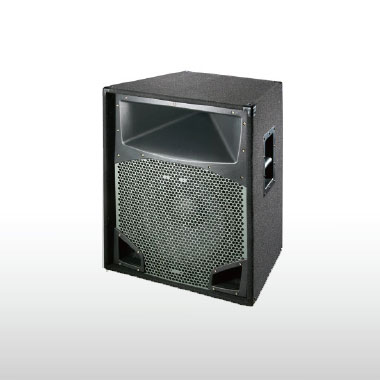

| Model No.:
ESS-4015 |
 |
Wooden Box
15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"TSV
Frequency Response:45HZ-20KHZ(-10dB)
Sensitivity:99dB(+/-2dB)
Impedance:8 Ohm
RMS Power:250 W
10.5"×19"Horn 51mm Ti.Diap.Driver
|
|
|
|

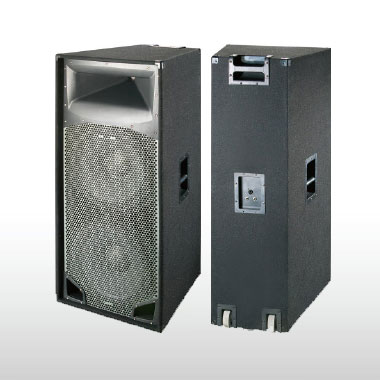

| Model No.:
ESS-41215 |
 |
Wooden Box
2×15"Woofer with Wooden Box
Magnet:100 oz
VoiceCoil:4"TSV
Frequency Response:40HZ-20KHZ(-10dB)
Sensitivity:102dB(+/-2dB)
Impedance:8 Ohm
RMS Power:600 W
13.5"×19"Horn 51mm Ti.Diap.Driver
|
|
|
|

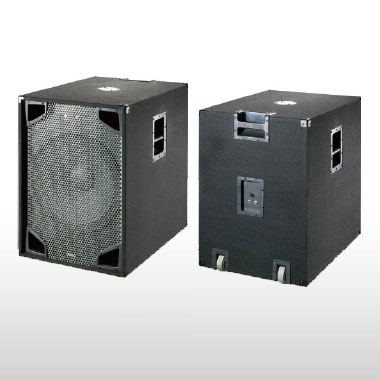

| Model No.:
ESS-4118 |
 |
Wooden Box
15"Woofer with Wooden Box
Magnet:100 oz
VoiceCoil:4"TSV
Frequency Response:35HZ-4KHZ(-10dB)
Sensitivity:99dB(+/-2dB)
Impedance:8 Ohm
RMS Power:500 W
|
|
|
|

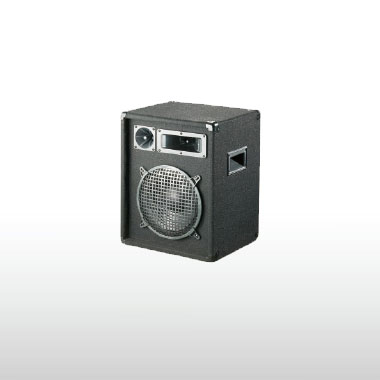

| Model No.:
ESS-0810 |
 |
Speaker Box
10"Speaker Box
Magnet:30 oz
VoiceCoil:1.5"ASV
Tweefer:3"×3"
Piezo:3"×7"
Frequency Response:55HZ-18KHZ(-10dB)
Sensitivity:90dB(+/-2dB)
Impedance:4/8 Ohm
RMS Power:80 W
|
|
|
|
| Model No.:
ESS-0812 |
 |
Speaker Box
12"Speaker Box
Magnet:40 oz
VoiceCoil:2"ASV
Tweefer:3"×3"
Piezo:3"×7"
Frequency Response:50HZ-18KHZ(-10dB)
Sensitivity:92dB(+/-2dB)
Impedance:4/8 Ohm
RMS Power:100 W
|
|
|
|

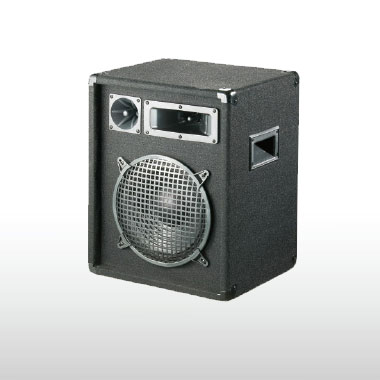

| Model No.:
ESS-0815 |
 |
Speaker Box
15"Speaker Box
Magnet:50 oz
VoiceCoil:2"ASV
Tweefer:3"×3"
Piezo:3"×7"
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:94dB(+/-2dB)
Impedance:4/8 Ohm
RMS Power:120 W
|
|
|
|

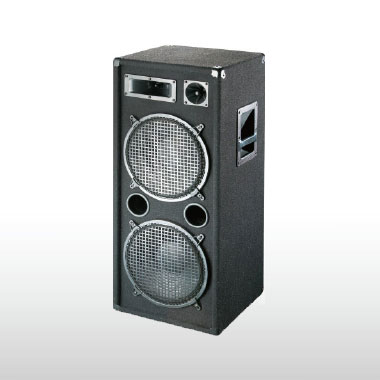

| Model No.:
ESS-08212 |
 |
Speaker Box
2×12"Speaker Box
Magnet:30 oz
VoiceCoil:1.5"ASV
Tweefer:3"×3"
Piezo:3"×7"
Frequency Response:50HZ-18KHZ(-10dB)
Sensitivity:92dB(+/-2dB)
Impedance:4/8 Ohm
RMS Power:200 W
|
|
|
|

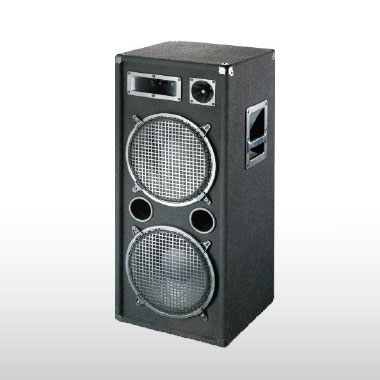

| Model No.:
ESS-08215 |
 |
Speaker Box
2×15"Speaker Box
Magnet:40 oz
VoiceCoil:2"ASV
Tweefer:3"×3"
Piezo:3"×7"
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:94dB(+/-2dB)
Impedance:4/8 Ohm
RMS Power:250 W
|
|
|
|

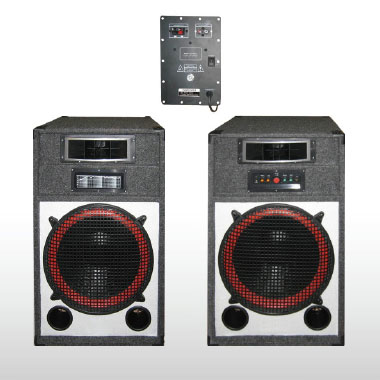

| Model No.:
ESS-0512A |
 |
Speaker Box
12"Speaker Box
Magnet:40 oz
VoiceCoil:2"ASV
Piezo:4"×10"
Frequency Response:50HZ-18KHZ(-10dB)
Sensitivity:92dB(+/-2dB)
Impedance:4 Ohm
RMS Power:50 W
230V/AC/50-60Hz
|
|
|
|
|
|
|
|
