• PIR Lamp ESL83
  • Click:
ESL83

PIR Lamp

Eyelid PIR Bulkhead Security Light

  • Power source:220V/AC-240V/AC   100V/AC-130V/AC
  • Power frequency:50~60Hz
  • Ambient light:<3LUX-daylight
  • Time-delay:min:8+/-3sec  max:7+/-2min
  • Rated load:1200W (220-240V/AC)  800W (110V/AC)
  • 3000W(220-240V/AC) 1500W (110V/AC)
  • Detection motion speed:0.6-1.5m/s

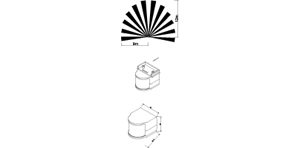

  • Detection range:360
  • Detection distance:12m max(<24 )
  • Working temperature:-20C~40C
  • Working humidity:<93%RH
  • Installation height:1.5-3.5m
  • Power consumption:0.45W(static 0.1W)
  • Switch Function:Auto/Off/Manual Override
  • cart
Description:
  • PIR Lamp
  • PIR Lamp

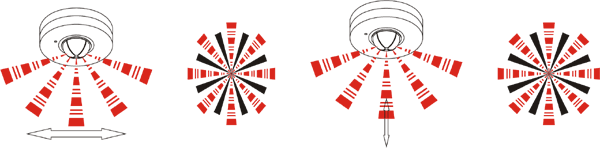

The product is the new saving-energy switch adopted the good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, sawing-energy and practical functions. Three detectors inside compose a wide range detection field, they utilize the infrared energy from human as control-signal source to start the load at once when human enter detection field. And they can identify day and night automatically. It is easy to install and used widely, possessing the power show and detecting show functions. *Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work day and night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing. *Detection distance can be set according to installation position and detection field. *The power show and detection show: they will flash one time each 4 seconds after putting through the power, and flash two times per second when receiving the signal. At the same time, it shows the sensor in the normal conditions for detection. *Time-delay added continually: when it received the second induction signal after the first inductor, you should compute time once more on the rest of the first time-delay basic. (Set time) *Time-delay adjustment: it can be set according to your desire. The minimum is 8+/-3 sec; the maximum is 7+/- 1min. *Locking function: during working, sensor will keep load lighting when power is shutted off 2 seconds and then on. And shut off the power for 4 seconds and then on, sensor will resume automation.
