DDT700

Motion Detectors

  • Installation method:Hanging
  • Installation height:1.8-3m
  • Detecting method:Doppler floating(MW) PIR
  • Detecting speed:0.2-7m/s
  • Tamper switch:NC.25mA/30VDC
  • Alarm outp
  • cart
Description:
DDT-700/706Series Intelligent Detector With Complex PIR & MW

   Feasures

 Its K-Band technology can prevent wrong alarm better and increase the    sensitivity.
  Adopts self-designed DSP chip with DMF (Digital Memory Focus) technology
 Dual PIR + MW + Energy analysis
  Adopts view-area molding technology, which guarantees the better matching of    MW and IR view-area.
  Professional lens for UV resistance.
  Pet immunity below 30kg
  Self-adaption detection doorsill technology, effective clearance of external    interference
  Multi grades sensitivity adjustable
  Technical Parameter

Model DDT-700 DDT-706 DDT-700DMF DDT-706DMF DDT-700DMT DDT-706DMT

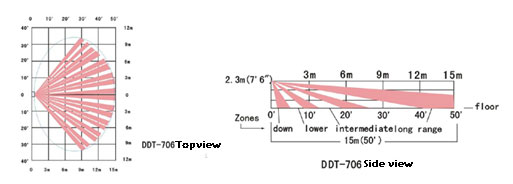

Detecting Distance
11m*12m
15m*18m
11m*12m
15m*18m
11m*12m 15m*18m
Sensor Low noise,high sensitivity,Anti-RFI/EMI Dual-E PIR
Intelligent mode
DMF
DMT
MW frequency
10.525/10.687GHz
10.525/10.687GHz
10.525/10.687GHz
Detecting speed
0.2m/s-3.2m/s
Sensitivity
Self-adaption of frequency tracing
Alarm-output
NC   Contact rating   AV/DC   28V/0.2mA
Supply& current
9-15V/DC   30mA
Temp&humidity
-30癈-70癈   5%-95% (RH)
PIR zones
22+12+6+4=44
Installation height
2.0m-3.0m
Installation way
Wall-mounting
Tamper output
NC   Contact rating   AV/DC   28V/0.2mA
Pet immunity
15Kg
15Kg
Anti-white light
8000LUX
8000LUX
8000LUX
8000LUX
8000LUX
8000LUX
Anti-RFI/EMI
30V/m(10MHz-100MHz)
Apply range
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
relay
Solid state relay
Remark
