RK-370CA
RK-370CA
Carbon-brush motors
OUTPUT:0.5W-24W (APPROX)
WEIGHT:51g (APPROX)
Typical Applications :
Office Automation Equipment> Printer / Copy Machine
Precision Instruments> Vending Machine

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mN·m g·cm W mN·m g·cm A
RK-370CA 10800 12 - 30 24 5100 0.015 4310 0.082 2.58 26.3 1.16 16.7 170 0.45
18260 6 - 18 13 8500 0.055 7370 0.36 3.52 35.8 2.71 26.5 270 2.35
081050 12 - 30 24 3900 0.010 3210 0.047 1.90 19.3 0.64 10.8 110 0.22

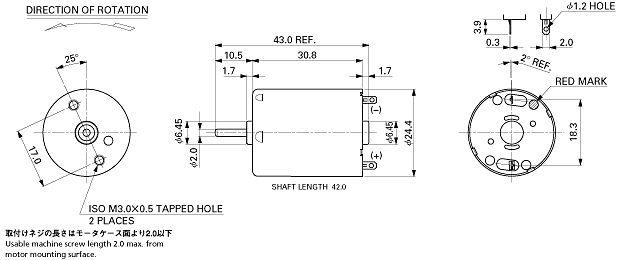

UNIT: MILLIMETERS

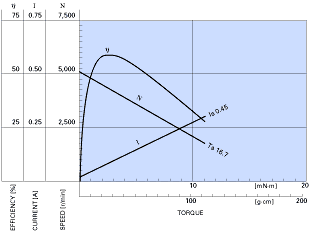

RK-370CA-10800 24.0V
chart

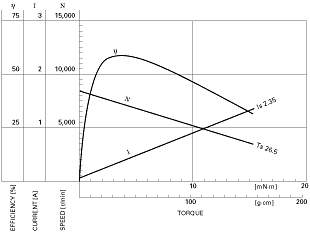

RK-370CA-18260 13.0V
chart
