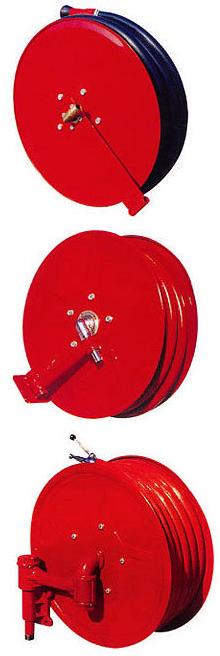

Hose reel consists of landing valve,input pipe fittings,hose reel,hose and nozzle.It can be operated quickly by pulling out the hose and the extinguishing agent is sprayed to fight the fire.Normal extinguishing agent is water installed in indoor fire cabinet.It is a new type of indoor fixed fire fighting equipment suitable to a type,carbohydrate such as papery,woody,cotton material's initltal fires.
Hose lengths have 20m,25m,30m and 35m specifications.
Inside diameter of hose have 1°(DN25) and 3/4°(DN19)2 specifications.
Max.test pressure for water extinguishing agent hose is 4.0Mpa,bursting pressure more than 6.0MPa.
For EU market,all performance must meet EN671 standard's requirements.
ARTIGLE NO. |
REEL SIZE |
DISTANCE OF REELS |
WORKING PRESSURE bar |
HOSE SPECIFATION |
OUTSIDE SIZE L*W*H |
0303.03.125 |
φ525 |
165 |
8bar |
1R*25 |
525*220 |
0303.04.225 |
φ550 |
130 |
|
|
550*185 |
0303.05.230 |
φ550 |
165 |
8bar |
1R*30 |
550*222 |
0303.06.330 |
φ800 |
130 |
|
|
600*185 |
0303.07.126 |
φ525 |
165 |
10bar |
1R*25 |
525*220 |
0303.08.225 |
φ550 |
130 |
|
|
550*185 |
0303.09.230 |
φ550 |
165 |
10bar |
1R*30 |
550*220 |
0303.10.330 |
φ600 |
130 |
|
|
550*185 |
0303.11.230 |
φ550 |
165 |
12bar |
1R*30 |
550*220 |
0303.12.330 |
φ600 |
130 |
|
|
600*185 |
0303.13.130 |
φ525 |
190 |
12bar |
1R*30 |
525*255 |
0303.14.230 |
φ550 |
165 |
|
|
550*220 |
0303.15.330 |
φ600 |
130 |
|
|
600*185 |
|
|
|
