Model No.: 166-500

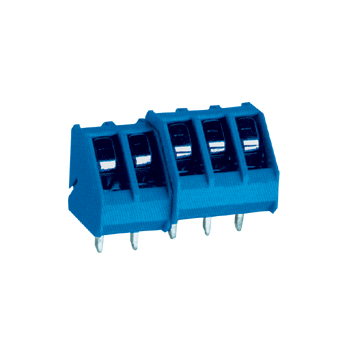

PCB Terminal Block 166-500

5.00/10.00mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-18AWG Operation temperature:-33 to+120 Torque:4kg-cm/M3 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 166-500PCB Terminal Block 166-500
Model No.: 168-500 / 168R-500
PCB Terminal Block 168-500 / 168R-500

5.00/10.00mm

Voltage rating:250VAC Current rating:15Amps/way max. Insulation resistance:5000M/1000V Wire range:12-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 168-500 / 168R-500PCB Terminal Block 168-500 / 168R-500
Model No.: 103-500
PCB Terminal Block 103-500

5.00/10.00mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 5.00/10.00mm
PCB Terminal Block 103-500PCB Terminal Block 103-500
Model No.: 102-500
PCB Terminal Block 102-500

5.00/10.00mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-242AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5
PCB Terminal Block 102-500PCB Terminal Block 102-500
Model No.: 332K-500
PCB Terminal Block 332K-500

5.00/10.00mm

Voltage rating:250VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:14-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 332K-500PCB Terminal Block 332K-500
Model No.: 332J-500
PCB Terminal Block 332J-500

5.00/10.00mm

Voltage rating:250VAC Current rating:10Amps/way max. Insulation resistance:500M/1000V Operation temperature:-55 to+105 Contact retention force :2kg
PCB Terminal Block 332J-500PCB Terminal Block 332J-500
Model No.: 125-381
PCB Terminal Block 125-381

3.50/3.81mm

Voltage rating:150VAC Current rating:6Amps/way max. Insulation resistance:5000M/1000V Wire range:16-22AWG Operation temperature:-33 to+120 Torque:2kg-cm/M2
PCB Terminal Block 125-381PCB Terminal Block 125-381
Model No.: 125H-381
PCB Terminal Block 125H-381

3.50/3.81mm

Voltage rating:150VAC Current rating:6Amps/way max. Insulation resistance:5000M/1000V Wire range:16-24AWG Operation temperature:-33 to+120 Torque:2kg-cm/M2
PCB Terminal Block 125H-381PCB Terminal Block 125H-381
Model No.: 125A-381
PCB Terminal Block 125A-381

3.50/3.81mm

Voltage rating:150VAC Current rating:6Amps/way max. Insulation resistance:5000M/1000V Wire range:16-24AWG Operation temperature:-33 to+120 Torque:2kg-cm/M2
PCB Terminal Block 125A-381PCB Terminal Block 125A-381
Model No.: 125B-381
PCB Terminal Block 125B-381

3.50/3.81mm

Voltage rating:150VAC Current rating:6Amps/way max. Insulation resistance:5000M/1000V Wire range:16-24AWG Operation temperature:-33 to+120 Torque:2kg-cm/M2
PCB Terminal Block 125B-381PCB Terminal Block 125B-381
Model No.: 128I-500 / 128I-508
PCB Terminal Block 128I-500 / 128I-508

5.00/10.00mm 5.08/10.16mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5
PCB Terminal Block 128I-500 / 128I-508PCB Terminal Block 128I-500 / 128I-508
Model No.: 128IH-500 / 128IH-508
PCB Terminal Block 128IH-500 / 128IH-508

5.00/10.00mm 5.08/10.16mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 128IH-500 / 128IH-508PCB Terminal Block 128IH-500 / 128IH-508
