• PCB Terminal Block 300-750
  • Click:
300-750

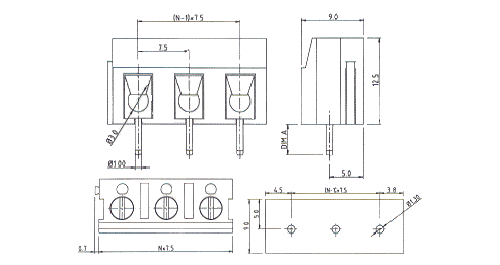

PCB Terminal Block

7.50/15.00mm

  • Voltage rating:250VAC
  • Current rating:16Amps/way max.
  • Insulation resistance:5000M/1000V
  • Wire range:14-22AWG
  • Operation temperature:-33 to+120
  • Torque:4kg-cm/M3
  • Satety apporval:<img src="/templets/images/dswbrand/r.gif">
  • cart
Description:
  • PCB Terminal Block
Contact:Brass(CuZn) (metal housing) Terminal screw:Steel Galvanized and chormatized of Nickel plated or Tin plated ( Standard option ) Wire guard:Brass/Stainless steel Suface of solder tail:Tin plated Insulator body:Polyamide(Glass filled) (housing) (UL94V-0)
