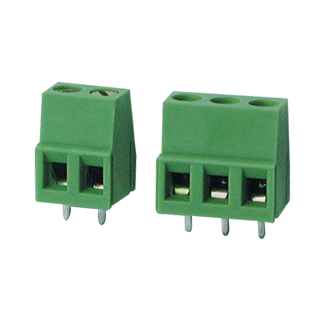

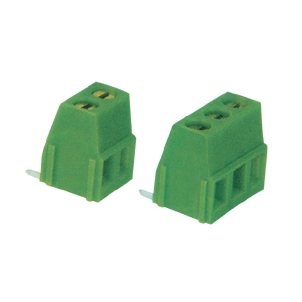

Model No.: 300-500
PCB Terminal Block 300-500

5.00/10.00mm

Voltage rating:250VAC Current rating:16Amps/way max.  Insulation resistance:5000M&Omega;/1000V Wire range:14-22AWG Operation temperature:-33to+120  Torque:4kg-cm/M3Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 300-500PCB Terminal Block 300-500

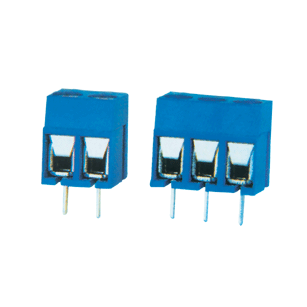

Model No.: 300R-500
PCB Terminal Block 300R-500

5.00/10.00mm

Voltage rating:250VAC Current rating:16Amps/way max. Insulation resistance:5000M/1000V Wire range:14-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M3 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 300R-500PCB Terminal Block 300R-500

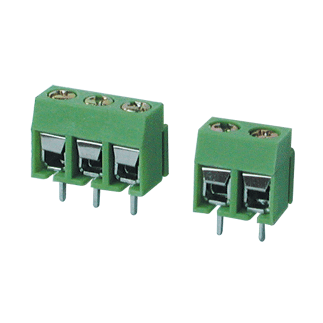

Model No.: 305-500
PCB Terminal Block 305-500

5.00/10.00mm

Voltage rating:250VAC Current rating:16Amps/way max. Insulation resistance:5000M/1000V Wire range:14-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 305-500PCB Terminal Block 305-500

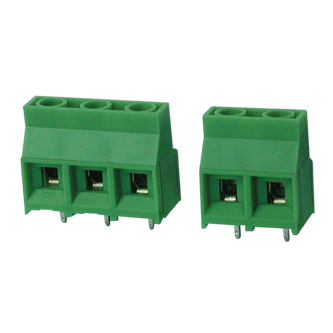

Model No.: 300-750
PCB Terminal Block 300-750

7.50/15.00mm

Voltage rating:250VAC Current rating:16Amps/way max. Insulation resistance:5000M/1000V Wire range:14-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M3 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 300-750PCB Terminal Block 300-750
Model No.: 301-500
PCB Terminal Block 301-500

5.00/10.00mm

Voltage rating:250VAC Current rating:16Amps/way max. Insulation resistance:5000M/1000V Wire range:14-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 301-500PCB Terminal Block 301-500

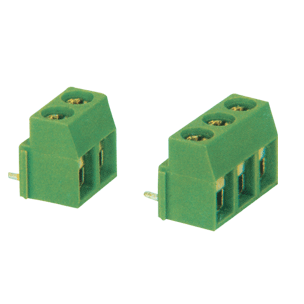

Model No.: 301R-500
PCB Terminal Block 301R-500

5.00/10.00mm

Voltage rating:250VAC Current rating:16Amps/way max. Insulation resistance:5000M/1000V Wire range:14-22AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 301R-500PCB Terminal Block 301R-500
Model No.: 350-350
PCB Terminal Block 350-350

3.50/3.96mm

Voltage rating:125VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:18-22AWG Operation temperature:-33 to+120 Torque:1.5kg-cm/M2 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 350-350PCB Terminal Block 350-350

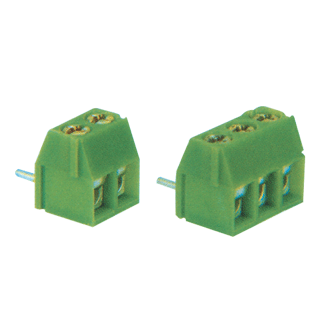

Model No.: 350R-350
PCB Terminal Block 350R-350

3.50/3.96mm

Voltage rating:125VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:18-24AWG Operation temperature:-33 to+120 Torque:1.5kg-cm/M2 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 350R-350PCB Terminal Block 350R-350

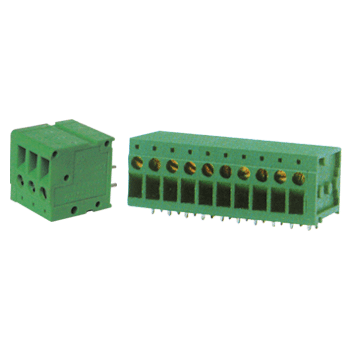

Model No.: 126-500
PCB Terminal Block 126-500

5.00/10.00mm

Voltage rating:300VAC Current rating:8Amps/way max. Insulation resistance:5000M/1000V Wire range:14-26AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 126-500PCB Terminal Block 126-500
Model No.: 126R-500
PCB Terminal Block 126R-500

5.00/10.00mm

Voltage rating:300VAC Current rating:8Amps/way max. Insulation resistance:5000M/1000V Wire range:14-26AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 126R-500PCB Terminal Block 126R-500

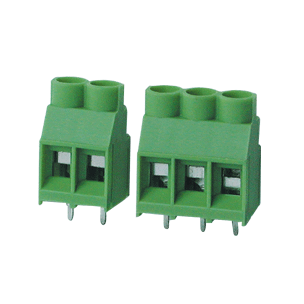

Model No.: 128-500 / 128-750
PCB Terminal Block 128-500 / 128-750

5.00/10.00mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 128-500 / 128-750PCB Terminal Block 128-500 / 128-750
Model No.: 128R-500 / 128R-750
PCB Terminal Block 128R-500 / 128R-750

5.00/10.00mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 128R-500 / 128R-750PCB Terminal Block 128R-500 / 128R-750
