Video Multiplexer

•
• Click:

Video Multiplexer

• 9CH Color Video Multiplxer
• Video Standard:PAL:50fields/second NTSC:60fields/second
• Digital Memory:PAL:720*76 NTSC:720*80
• Video Input:9 loops BNC, 1.0Vp-p composite, individually optional 75ohms or Hi impedance
• Video output:Main Monitor:1 loop:1.0Vp-p 75Ω
• Call Monitor:1 loop:1.0Vp-p 75Ω
• VCR Input:BNC 1.0Vp-p 75Ω/S-VHS
• VCR Output:BNC 1.0Vp-p 75Ω/S-VHS
• Alarm Input:9 Active TTL High/Low Input(one mating connector)
• Alarm Output:1 Programmable as Normally Open or Normally Close
• Alarm Duration:Programmable 2-999 seconds, 4 seconds default
• Alarm Mode:Video Loss Alarm,Video Motion Alarm, External Ararm
• Display Mode :Sequence Switch,Single picture, PIP, Four pictures, Nine pictures, Zoom function
• Interface Control:RS232(Keyboard KY2301, Device Server, Rc101 Control option)
• Power Consumption:DC12V 15W
• Net Weight:3.3kg
• Ambient Temperature:-30~60

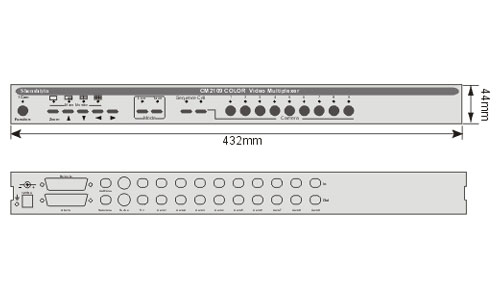

• Dimension:432mm(W)*11mm(D)*4mm(H) (See System Diagram200, 300,400)
•
