• Intelligence Pan-Tilt PT-TK20
  • Click:
PT-TK20

Intelligence Pan-Tilt

  • No-dead angle, 360o continuously rotation,
  • Built-in receiver, Multi-speed control: 0~20o/s
  • 6 cruising tracks, 128 preset positions, locking
  • the target by the shortest route
  • Built-in fan, heater and wiper, it can be configured
  • 20x 30x lens for the far distance
  • High speed for wide-angle, low speed for far
  • distance, locking the target faster
  • cart
Description:
  • Intelligence Pan-Tilt
  • Intelligence Pan-Tilt
Model PT-TK20
Control way Multi-protocol, Baud rate from 2400Bps to 19200Bps, RS485 communication
Preset track 128 presets, 6 tracks
Pan range 360°
Tilt range +20°~-70°
Preset Pan speed 40°/s
Preset Tilt speed 3°/s
Pan speed 0°~20°/s
Tilt speed 0°~5°/s
IP grade IP66
Relative humidity 98% without agglomeration
Work temperature -35°~+35°
Power 70W
Load >=15kg
Weight 15kg
Power supply AC24V/AC110V/AC220V
Model PT-TK20
Work temperature -35oC~50oC
Auto temperature control Heater:on 8oC+/-5oC;off 20oC+/-5oC
Fan:on 37oC+/-5oC;off 20oC+/-5oC
Max size for camera & lens 280x125x104mm(Including BNC)
Max. Cable diameter 11.9mm
Lock catch Steeliness
Unlock mode Pneumatic back - side open
Window acreage 102mmx89mm
Weight 5Kg

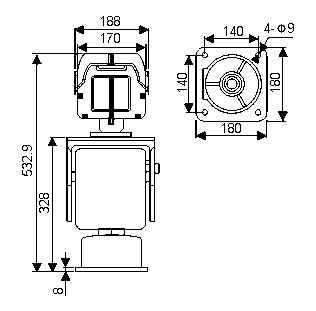

Length 469mm
IP grade IP66
Heater AC24V/36W,AC220V/50W
Fan AC24V/8W, AC220V/22W
Wiper 5W
