• Intelligence Pan-Tilt PT-300
  • Click:
PT-300

Intelligence Pan-Tilt

  • 3.5" Mini.Integrated pan/tilt dome camera;
  • Elegant design,small size,suitable for indoor application;
  • 64 pieces preset point;
  • High preset precision,up to +/-0.5°
  • Only one power cable,one video cable and one control cable,more easy for installation and maintain by engineering company;
  • Good cost performance.The best replacement for traditional
  • camera+pan/tilt+decoder combination;
  • Support Pelco-P,Pelco-D and WORLD protocol.Or redesigned according to customer appointed protocol;If applied with World keyboard,the dome camera can get the auto scan,patrol function;
  • Imported high quality motor,board camera and leds;
  • High resolution 1/3 Sony CCD,good image;
  • Horizontal auto scan function;

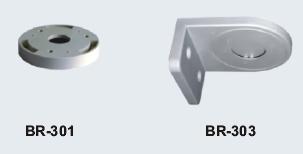

  • Different bracket suitable for different installation way
  • Low noise, suitable to be installed in quiet environment
  • cart
Description:
Selectable Camera Type:

PT-300H 480TVL CCD,others as the same as PT-300

Selectable Accessories:

Size:
Type PT-300
Camera CCD 1/3" SONY Super HAD CCD
Pixels 512(H)*492(V)
Resoluation 420TVL
S/N >=48db
lens 3.6mm,6mm,8mmm,12mm(Selectable)
Min.Illumination 0.5Lux(F1.4)
Iris Auto
Video Output 1.0Vpp 75Ω
Sync System Internal
Contrast Emendation 0.45
Auto Gain Control 29db(max)
Shutter Control Auto shutter or non-screen flash way
Pan/Tilt Movement Horizontal 355°turning
Vertical 0°~90°
Movement Speed Horizontal:0.5°/s~45°/s
Vertical:0.5°/s~45°/s
Preset Point 64 pieces preset point
Preset Precision <=0.5°
Cable Connection Rs485 anti-surge adopter
Baud Rate 9600、2400bps(Selectable)
Construction ABS plastic shell
Others Working Valtage DC12V
Power 15W
Color Gray and blue
Size 110mm*110mm
Weight 450g
Installation Way Wall mount,Ceilling mount
Working Temperature 0°C~50°C
Storage Temperature -20°C~60°C
