• Intelligence Pan-Tilt PT-507
  • Click:
PT-507

Intelligence Pan-Tilt

  • Suitable size,elegant design;
  • Widely applied,sutiable for indoor/outdoor different application;
  • Integrate camera,decoder and zoom lens together;
  • Simple cable arrangement,more easy for installationand maintain by engineering company;
  • Different brackets suitable for more installation way;
  • No Relay switcher sound,low turning nosie,suitable for quiet application circumstance;
  • Big vertical angel of view scope;
  • High movement stop motor with longer working time;
  • Stpe motor for lens control,working time more longer than current motor;
  • Prefessional PSU;
  • Pan/tilt movement can be controlled on inclined direction;
  • The horizontal limitation con be adjusted by software;
  • The bit switcher can move back to switching window when re-powered after power off;
  • Rs485 communication way,64 pieces preset points;
  • Optical glass instead of dome cover.The image keep clear after long time aplication;
  • Support WORLD(9600),Pelco-P(9600),Pelco-D(2400);
  • cart
Description:
Selectable Camera Type:

PT-507H 480TVL CCD,others as the same as

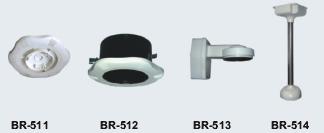

Selectable Accessories:

Size:
Type PT-300
Camera CCD 1/3" SONY Super HAD CCD
Pixels 512(H)*492(V)
Resoluation 420TVL
S/N >=48db
lens 7 times optical zoom(5-35mm)
Min.Illumination 0.5Lux(F1.4)
Iris Auto
Video Output 1.0Vpp 75Ω
Sync System Internal
Contrast Emendation 0.45
Auto Gain Control 29db(max)
Shutter Control Auto shutter or non-screen flash way
Pan/Tilt Movement Horizontal 360°turning
Vertical 0°~90°
Movement Speed Pan:0.5°/s~15°/s
Tilt:6°/s
Scan 1
Protocol WORLD、Pelco-P、Pelco-D
Cable Connection Rs485 anti-surge adopter
Baud Rate 9600、2400bps(Selectable)
Construction ABS
Others Working Valtage DC12V
Power 15W
Color Silver color
Size As chart
Weight 2.5Kg
Installation Way Wall mount,Ceilling mount、recessed mount
Working Temperature 0°C~50°C
Storage Temperature -20°C~60°C
