Product: Four-channel active video receiver Model: AVT104AR
Description

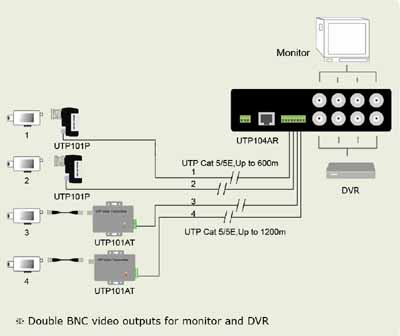

The model UTP104AR is Four-channel active (amplified) device that allows reception of real-time monochrome (B/W) or color video using Unshielded Twisted Pair(UTP) cable. The unit receives four channels of video from transmitters with a RJ45 or screw terminals available for connections as well as provides four channels of BNC video outputs with double outputs in every channel.
The UTP104AR is compatible with passive transceivers (e.g.AVT101P,AVT104P) and active transmitter (e.g.AVT101AT) with transmission distance up to 600m and 1200m respectively. And quality videos can be adjusted in every channel using adjusting switches on the device front panel.
Features
Power supplied :12V AC/DC
Transmission signal: 1 Vpp composite video
Four active receiver channels in one product
Transmission distance of up to 600m working with passive transceivers(e.g. AVT101P,AVT104P)
Transmission distance of up to 1200m working with active transmitter (e.g. AVT101AT)
Quality image adjusted with adjusting switch available in every channel
Compatible with all bandbase signal including PAL, NTSC, SECM
Signals Transmission via UTP, standard cat 5/5e
Video receiving connectors with both RJ45 connector and screw terminals available
Double BNC video outputs
Exceptional interference rejection
Built-in transient protection
Certifications
CE CC
Specification
Items |
AVT104AR |
|
Power properties |
Adaptive Voltage Arrange |
12V-40V DC |
Power Consumption |
<500 mw |
|
Connectors |
Screw terminals |
|
Video |
Supporting Video Mode |
All Baseband Signals, |
Signal Band |
250MHz(-3db) |
|
Balance Band |
0-6MHz |
|
Maximal Transmission Distance |
1200m (working with UTP101AT) |
|
Attenuation |
1.5 dB Maximum |
|
Interference Rejection |
>75db |
|
Connection |
Video Output Connectors |
4?2 Male BNC |
Connectors for UTP Transmission |
RJ45 and Screw Terminals. |
|
Protections |
Video Output Protection |
2KV(common mode),10/700us |
Video Input Protection |
2KV (different mode), |
|
Video Input Protection for Over |
Protection for Over 100mA |
|
Video Adjustments |
Adjusting Switches |
4 Blue Switches |
Adjusting Categories |
Categories: 0-600m, 600-900m, 900-1200m, >1200m |
|
Indicators |
Power LED |
Red |
Signal LED |
Yellow |
|
Stability |
MTBF |
>50,000h |
Physical |
Dimensions |
190 95 44mm |
Housing Material |
Metal |
|
The Color of Unit |
Black |
|
Environmental |
Operating Temperature |
-20~70 |
Relative Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40~150 |
|
Casing |
Casing Volume(LWH) |
122 86 30mm |
