Passive Video Balun with Video, Power & Data
Model: AVT101PVD
Features:
- Transmit a color Video signal up to 300M / 1000Ft, and a full motion monochrome (B&W) video signal up to 500M / 1600Ft.
- Transmit Power signal up to 200M / 600Ft. (Please see Voltage Drop List).
- Transmit Data signal up to 300M / 1000Ft.

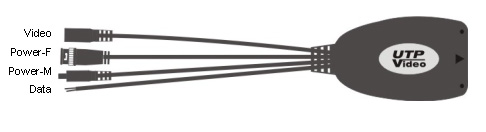

- BNC male with RJ45 Jack; male and female 12V DC plug on one device.
- Video, camera power, data (RS422, 485) transmission over one standard CAT5 cable.
- Wave Filter Design, Anti-Static Design, Confirm to IEC 61000-4-2:1995 Standard
- Interference Rejection
- ABS Outer Shell

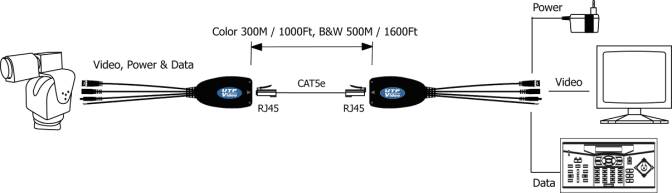

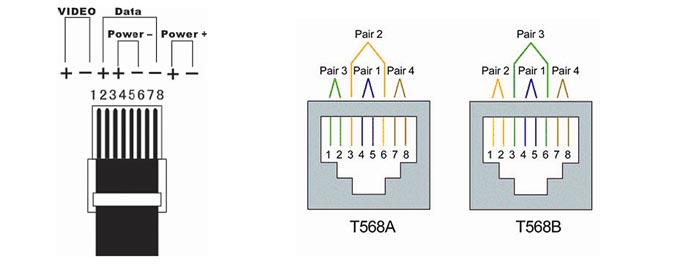

Wiring Diagram: Please refer to back page for Voltage Drop List
Specification:
Model Number |
AVT101PVD |
|
Video Input / Output |
BNC |
|
Video Signal |
1V p-p, 75 Ohms |
|
Transmission Distance |
Video: Color 300M / 1000Ft, B&W 500M / 1600Ft |
|
Cable |
UTP / Twisted Pair CAT5? (24AWG) |
|
Data Wire |
2 Wire Bare Lead |
|
Lighting Protection |
IKV (10/700us) |
|
Power |
No Power Required |
|
Max Current |
1.5A |
*Specifications are subject to change without notice
|
|
1
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
T568A: |
White Green |
Green |
White Orange |
Blue |
White Blue |
Orange |
White Brown |
Brown |
|
T568B: |
White Orange |
Orange |
White Green |
Blue |
White Blue |
Green |
White Brown |
Brown |
Voltage Drop According to Cable Length (24AWG):
|
Transmission Distance |
Transmission Voltage |
Transmission Voltage |
Transmission Voltage |
|
50M / 160Ft |
13.5V |
15.5V |
17.0V |
|
100M / 320Ft |
15.5V |
18.5V |
22.0V |
|
150M / 500Ft |
17.0V |
22.0V |
27.0V |
|
200M / 650Ft |
18.5V |
25.5V |
32.0V |
aution:
- UTP101PVD is not waterproof and not to be used outdoors.
- Do not operate the device with wet hands
- If using T568A standard, make sure the other end is matched to T568A
- If using T568B standard, make sure the other end is matched to T568B
