AVT101PV

Passive Video Balun with Video, Power
Model: AVT101PV

Features:

  • Transmit a color Video signal up to 300M / 1000Ft, and a full motion monochrome (B&W) video signal up to 500M / 1600Ft.
  • Transmit Power signal up to 250M / 750Ft. (Please see Voltage Drop List).
  • BNC male with RJ45 Jack; male and female 12V or 24V DC or AC plug on one device.
  • Wave Filter Design, Anti-Static Design, Confirm to IEC 61000-4-2:1995 Standard
  • Interference Rejection
  • ABS Outer Shell

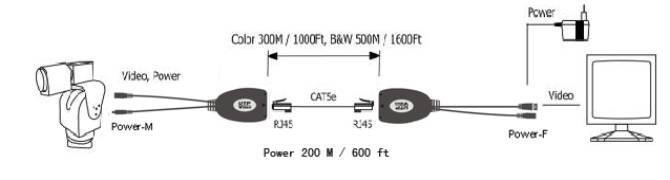

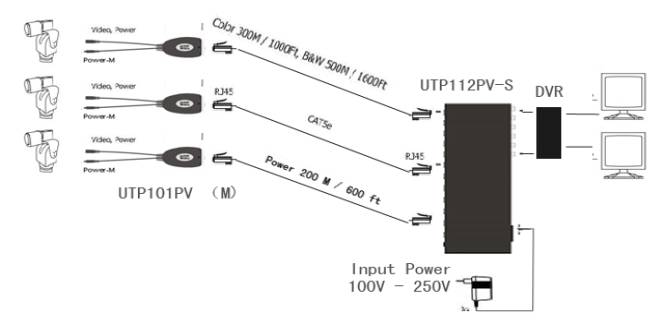

Wiring Diagram: Please refer to back page for Voltage Drop List



Specification:


Model Number

UTP101PV

Video Input / Output

BNC

Video Signal

1V p-p, 75 Ohms

Transmission Distance

Video: Color 300M / 1000Ft, B&W 500M / 1600Ft
Power: 200M / 600Ft

Cable

UTP / Twisted Pair CAT5? (24AWG)

Data Wire

2 Wire Bare Lead

Lighting Protection

IKV (10/700us)

Power

No Power Required

Max Current

1.5A

*Specifications are subject to change without notice



1

2

3

4

5

6

7

8

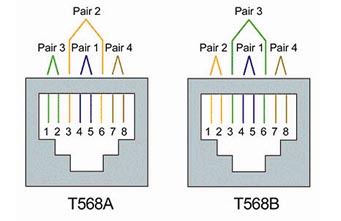

T568A:

White Green

Green

White Orange

Blue

White Blue

Orange

White Brown

Brown

T568B:

White Orange

Orange

White Green

Blue

White Blue

Green

White Brown

Brown

Voltage Drop According to Cable Length (24AWG):


Transmission Distance

Transmission Voltage
(12V DC, 0.5A)

Transmission Voltage
(12V DC, 1A)

Transmission Voltage
(12V DC, 1.5A)

50M / 160Ft

13.5V

15.5V

17.0V

100M / 320Ft

15.5V

18.5V

22.0V

150M / 500Ft

17.0V

22.0V

27.0V

200M / 650Ft

18.5V

25.5V

32.0V

300M/1000Ft

22V

32V

42V

aution:

  • UTP101PVD is not waterproof and not to be used outdoors.
  • Do not operate the device with wet hands
  • If using T568A standard, make sure the other end is matched to T568A
  • If using T568B standard, make sure the other end is matched to T568B
