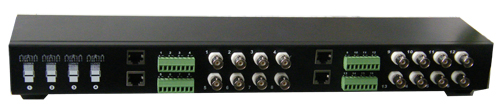

Product:Sixteen-channel passive video Transceiver Model: AVT116p
Description
The model AVT116P video transceiver is passive (non-amplified) device that allows the transmission of real-time monochrome (B/W) or color video via Unshielded Twisted-Pair(UTP) cable.Baseband (composite) signals of any type are supported.
The UTP116P can be used as both transmitter and receiver.As transmitter,the unit receives sixteen channles video from cameras as well as sends out sixteen channels video signals .While as receiver, the unit receives sixteen channels video signal from transmitters as wll as provides sixteen BNC video outputs. With working with passive transceivers (e.g.AVT101P AVT104P) and active transmitter (e.g.AVT101AT) UTP104P allow signals transmission up to 300m and 600m respectively.
The unparalleled interference rejection and low emissions of the AVT116P allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.
Features
Sixteen passive transceiver channels in one product
Transmission distance of up to 300m working with passive transceivers(e.g.AVT101P,104P)
Transmission distance of up to 600m working with active transmitter(e.g.AVT101AT).
Supports all bandbase signals including PAL, NTSC, SECAM
Transmitting signals via UTP cat5/5e cable
Real-time transmission
No power required

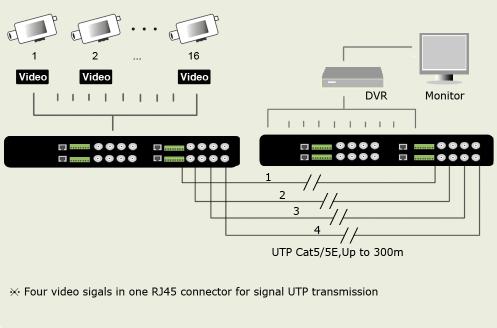

Four video sigals in one RJ45 connector for signal UTP transmission
Built-in transient protection
Exceptional interference rejection
Standard 1U structure
Certifications
CE FCC
Specification
Items |
AVT116P |
|
Video |
Supporting Video Mode |
All Baseband Signals, |
Transmitting Band |
5MHz Maximum |
|
Maximal Transmission distance |
300meters(working with UTP101P) |
|
Attenuation |
>60db |
|
Connection |
Video Input/Output Connectors |
16 Female BNC |
Connectors for transmissions |
4 RJ45 |
|
Protections |
Video Input Protection |
2KV(common mode),10/700us |
Video Output Protection |
2KV(different mode),10/700us |
|
Stability |
MTBF |
>50,000h |
Physical |
Dimensions (LWH) |
192 140 44mm |
Housing Material |
Metal |
|
he Color of Unit |
Black |
|
Weight |
1520g |
|
Environmental |
Operating Temperature |
-20~70 |
Relative Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40~150 |
|
Casing |
Casing volume(LWH) |
275 190 70mm |
