Product: Passive UTP Video Transceiver
Model:AVT101P-II
Description
The model AVT101P-II video transceiver is passive(non-amplified) device that allow the transmission of real-time monochrome or color video via Unshielded Twisted-Pair (UTP) cable. With mini-coax pigtail lead the unit can be directly equipped to camera in a small space needed by the camera, as well as provides one channel video outputs with automatic terminal block available for easy connection. AVT101P-II can work with one pair of units on each end of a pair of wires,can also work with other passive transceivers (e.g.AVT101P,AVT104P) and active receivers (e.g. AVT101AR, AVT104AR) products with transmission distance up to 300m and 600m prospectively.
Features
Tiny dimension with 16cm mini-coax pig tail lead and connected to camera directly.

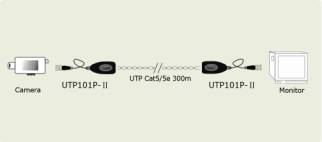

Transmission distance of up to 300m working with passive transceivers (e.g. AVT101P, AVT104P)
Transmission distance of up to 600m working with active products.
Transmitting video signals via UTP cat5/5e cable
Real-time transmission
No power required
Supports all bandbase signal including PAL, NTSC, SECAM
Exceptional interference rejection
Built-in transient protection
Certifications
CE FCC
Specification
Items |
AVT101P-II |
|
Video |
Supporting Video Mode |
All Baseband Signals, |
Transmitting Band |
5MHz Maximum |
|
Maximal Transmission Distance |
300meters(working with UTP101P) |
|
Interference Rejection |
>60dB |
|
Attenuation |
1.5dB Maximum |
|
Connection |
Video Input/Out Connector |
Male BNC connector; Resistance: 75? |
Connector for UTP |
Screw terminals; Resistance: 50? |
|
Video Input Protection |
2KV(common mode),10/700us |
|
Video Output Protection |
2KV(different mode),10/700us |
|
Stability |
MTBF |
>50,000h |
Physical |
Dimensions (LWH) |
37 22 21mm |
Housing Material |
ABC Engineering Plastic |
|
The Color of Unit |
Black |
|
Net Weight |
0.027 |
|
Environmental |
Operating Temperature |
-20~70 |
Relative Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40~150 |
|
Casing |
Casing Volume(LWH) |
122 86 30mm |
